GS511130-GS511175
Product details

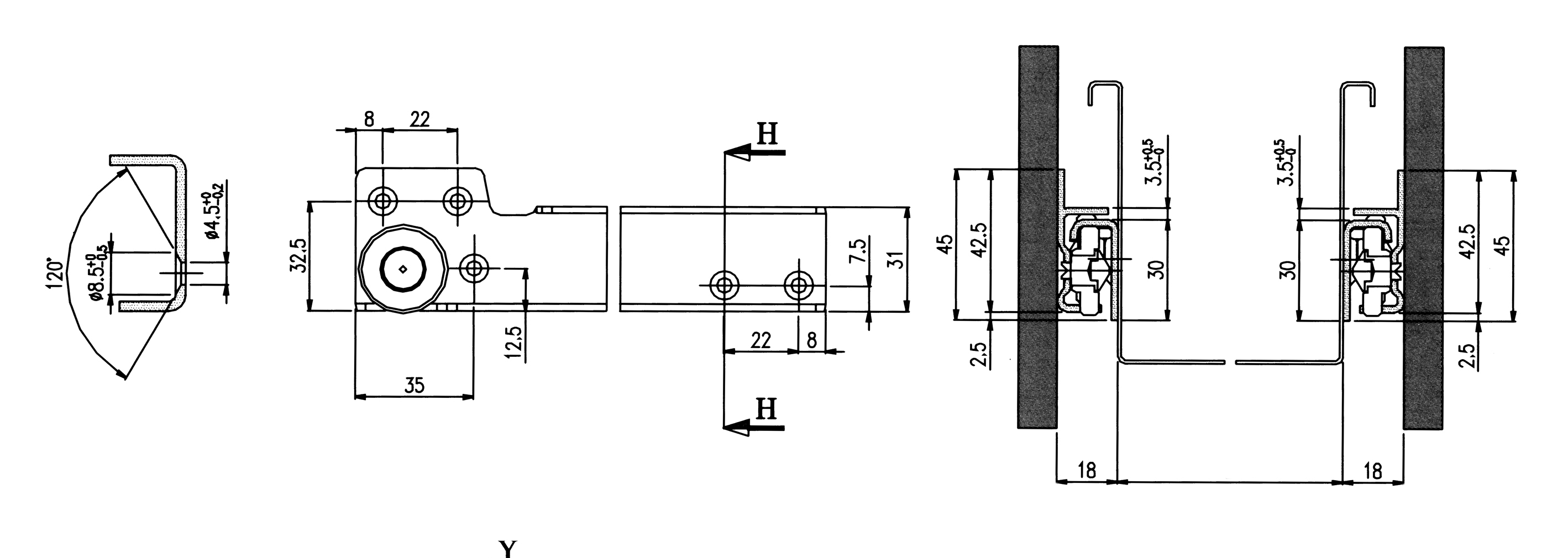

Stainless steel AISI 304 guides with partial extraction for the side mounting of the drawer.
With high strenght acetalic resin wheels, made to support the load of the drawers (50Kg dynamic load capacity).
All stops are made of nylon 6.6
System to ease the drawer return and and to keep it closed.
Available in different lengths to meet the most various requirements.
Special lengths are available on request.
| Ref. | Length(mm) | Work run(mm) | Total Length(mm) | Dynamic Load(kg) |
|---|---|---|---|---|
| GS511130 | 300 | 225 | 525 | 30 |
| GS511135 | 350 | 275 | 625 | 30 |
| GS511140 | 400 | 325 | 725 | 30 |
| GS511145 | 450 | 375 | 825 | 30 |
| GS511150 | 500 | 400 | 900 | 50 |
| GS511155 | 550 | 450 | 1000 | 50 |
| GS511160 | 600 | 500 | 1100 | 50 |
| GS511165 | 650 | 550 | 1200 | 50 |
| GS511170 | 700 | 575 | 1275 | 50 |
| GS511175 | 750 | 600 | 1350 | 50 |
